Q&A: What are "beamlines" and how do they drive discovery?

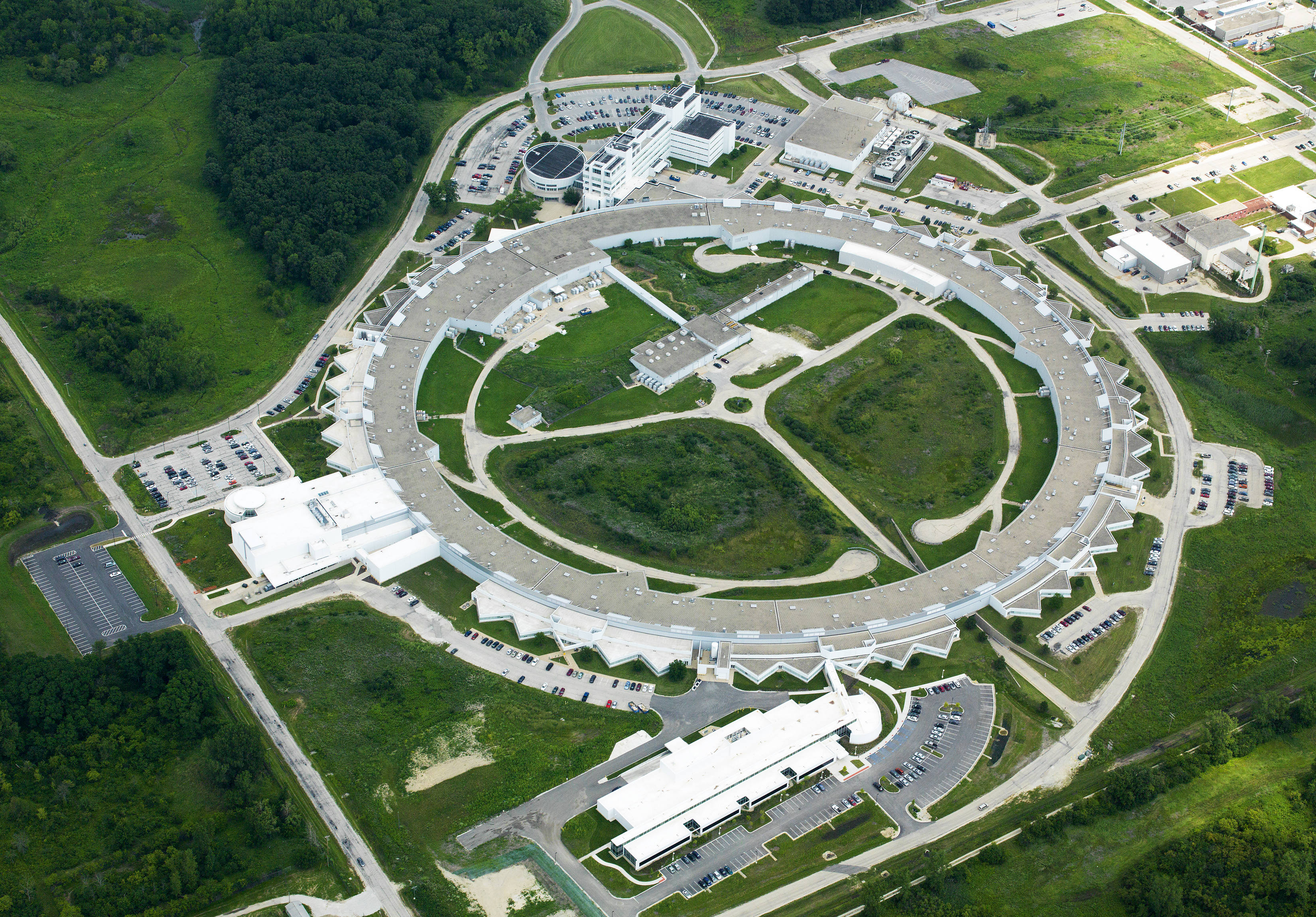

Strobel: A beamline is an experimental facility at a particle accelerator—I frequently but not exclusively use the beamlines at Argonne National Laboratory—where materials can be studied by subjecting them to an intense, focused stream of X-ray photons. Other facilities generate photons at different energies, or particles like neutrons. Beamlines also incorporate specialized instrumentation that allows researchers like me to probe a material’s structure and properties. The work that we do at Carnegie generally uses X-rays.

Strobel: Many beamlines use synchrotrons, which are large storage rings that accelerate electrons near light speed. When the electrons are bent by magnets they emit very bright, tunable X‑ray pulses. Free‑electron lasers are linear accelerators and create even shorter, more intense pulses for ultrafast studies.

Strobel: There are a lot of different techniques that are used at beamlines. One commonly used method for Carnegie scientists is what’s called X-ray diffraction, which involves taking a small sample, usually but not necessarily a crystal, and seeing how the X-rays scatter after hitting the sample. The pattern that this creates allows you to understand the material’s structure. Other people use different techniques, but regardless of what approach you are taking during your beam time, what you’re trying to reveal are the material’s atomic structure and physical properties including thermodynamics, mechanical strength, and response to external stimuli.

Strobel: Mostly structural determination of new synthetic materials—figuring out crystal structures, how structures change with pressure or temperature, compressibility, thermal expansion, and other material properties. We also probe behavior at extreme pressures and temperatures. These materials provide important fundamental chemical and physical insights, and have implications for novel energy solutions, including improved solar cell technology and renewable energy storage capabilities.

These tools are also often used by Carnegie scientists to study natural materials as part of an effort to understand deep Earth geologic and exoplanetary processes that are beyond the reach of sample-gathering efforts.

Strobel: X‑rays scatter according to electron number, so heavy elements give strong signals while very light elements like hydrogen are hard to see. Neutron scattering is highly complementary—hydrogen often shows up strongly with neutrons—so combining probes is common.

Strobel:  Most national user facilities run a proposal process that includes review by expert panels. Time is allocated in shifts, often 8‑hour blocks; some groups with long‑term investments or facility partnerships may have different arrangements.

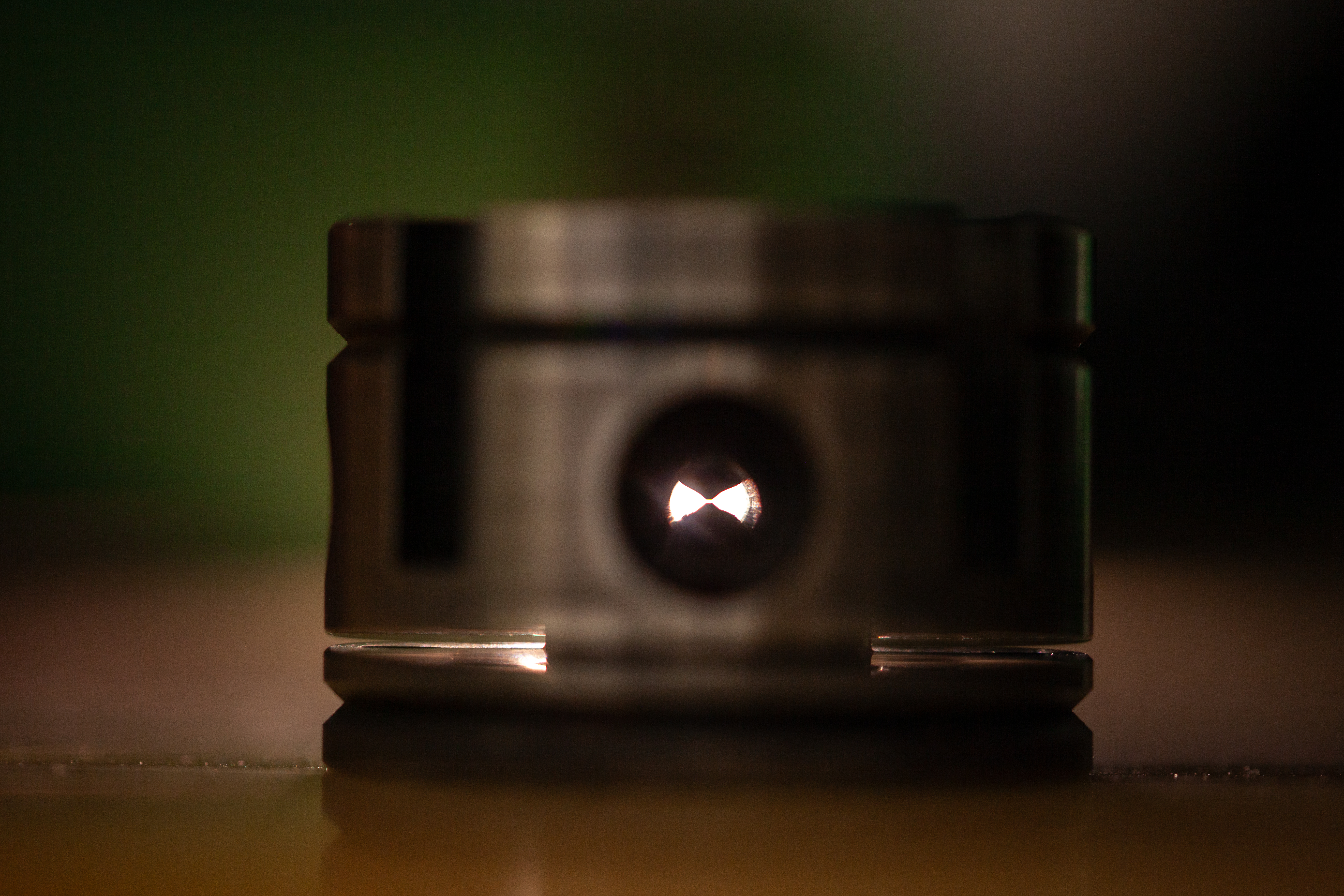

Strobel:  You need a clear experimental plan tied to your proposal, and well‑prepared samples. For high‑pressure work that means many pre‑loaded diamond anvil cells—specialized tools that we use to compress materials to extreme pressures between two gem-quality diamonds—alignment and insulation for heating, wiring for electrical or cryogenic setups if needed.

We plan months ahead but expect last‑minute packing.

Strobel: We typically carry diamond anvil cells, electronics, and samples as carry‑on luggage. Cells can be costly, so we avoid checked baggage. Expect extra screening and have documentation ready; TSA procedures vary.

Strobel: Building and operating synchrotrons or spallation neutron sources costs hundreds of millions or billions of dollars, so they’re generally government‑supported user facilities serving many institutions.

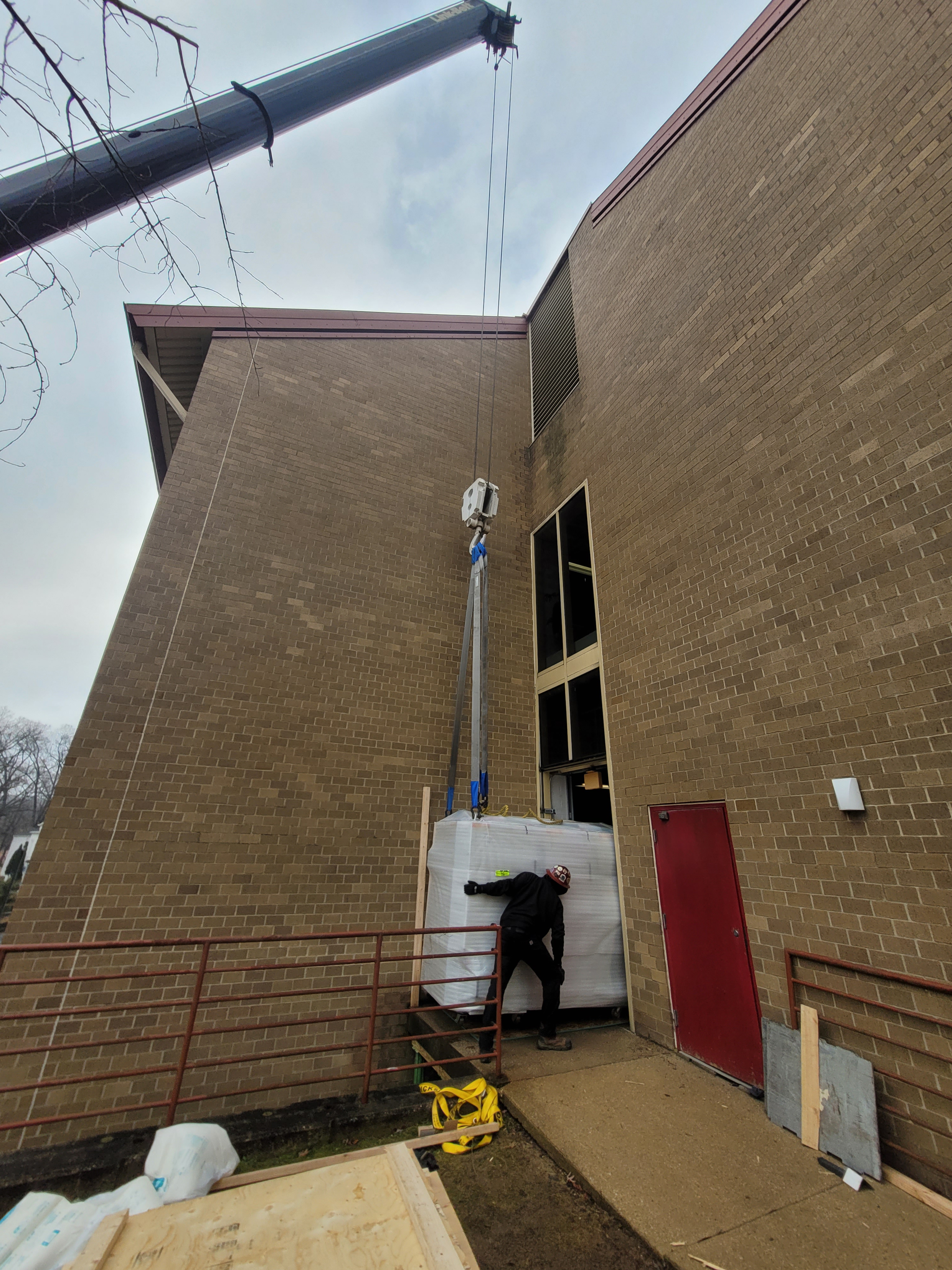

Strobel: We just installed a liquid‑metal‑jet X‑ray source coupled to a diamond‑cell stage. The liquid‑metal jet produces much higher brightness than conventional lab X‑ray tubes—tens of millions of photons/sec focused to about15 µm. It doesn’t replace a synchrotron but lets us do many preliminary and complementary high‑pressure X‑ray experiments on campus.

Strobel:  It enables higher‑flux X‑rays for probing inside the small high‑pressure sample chambers of the diamond anvil cells, allows multi‑sample screening, mapping, and combined measurements such as heating and electrical transport. That reduces the amount of preparatory work needed before applying for and using precious national‑lab beam time.

Strobel:  The instrument was funded via an MRI grant and will be available to Carnegie postdocs, faculty, and collaborators. It’s intended as a campus resource for diverse projects; collaborations and user access are encouraged.
